The electronics industry demands precision, consistency, and cleanliness at every stage of manufacturing. From semiconductor fabrication to the production of OLED displays and solar panels, high-purity gases are a fundamental requirement. These gases must be delivered in a stable and ultra-pure form, free from contamination and temperature fluctuations. To meet this requirement, cryogenic vacuum storage tanks have become a vital solution for ensuring gas purity and reliability.
Among various cryogenic storage options, vacuum-insulated tanks offer unmatched performance for industries that cannot tolerate impurities. As part of a comprehensive cryogenic storage tank system, these tanks preserve liquefied gases such as nitrogen, oxygen, argon, and hydrogen in their purest form. Their ability to maintain thermal stability and avoid environmental contamination makes them especially important in the electronics sector.
In this article, we’ll explore the benefits, design principles, and industry applications of cryogenic vacuum storage tanks. We’ll also introduce CryoTriumph, a trusted manufacturer that delivers high-quality cryogenic liquid storage tanks and vacuum systems designed specifically for high-purity gas applications.
Modern electronics manufacturing processes depend on the use of ultra-high-purity gases. Whether it’s nitrogen used for purging and inerting, hydrogen for reduction processes, or argon for plasma etching, the slightest contamination can result in defects, decreased yields, or complete process failures.
Gas purity directly affects:
Circuit integrity in semiconductor wafers
Adhesion and transparency of OLED films
Conductivity in photovoltaic cells
Process control in microelectromechanical systems (MEMS)
To maintain the purity of these critical gases from production to point-of-use, cryogenic vacuum storage tanks serve as the first line of defense. These tanks provide an isolated, clean, and temperature-stable environment that prevents the introduction of contaminants.

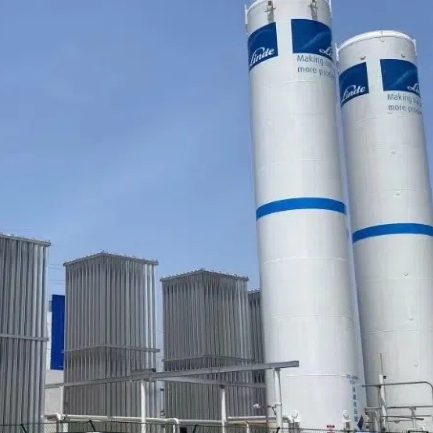

A cryogenic vacuum storage tank is a type of cryogenic liquid storage tank that includes a high-vacuum-insulated layer between an inner and outer vessel. This design minimizes heat ingress, prevents moisture and air contamination, and ensures that liquefied gases remain at cryogenic temperatures for extended periods.
These tanks are typically used to store gases such as:
Liquid nitrogen (LIN)
Liquid oxygen (LOX)
Liquid argon (LAR)
Liquid hydrogen (LH₂)
LNG (liquefied natural gas)
The vacuum insulation, combined with multilayer reflective materials, makes these tanks ideal for preserving high-purity gases in sensitive environments such as cleanrooms, wafer fabs, and chemical vapor deposition facilities.
Cryogenic vacuum storage tanks incorporate advanced engineering features specifically designed to protect gas quality. These include:
Vacuum Insulation Layer
A vacuum is maintained between the inner and outer walls of the tank. This significantly reduces thermal conductivity and prevents heat from entering the tank, which could cause evaporation or contamination.
Multilayer Reflective Insulation (MLI)
In addition to the vacuum, reflective insulation materials are used to block radiant heat transfer. This multilayer barrier ensures long-term cryogenic temperature stability.
High-Grade Stainless Steel Construction
The inner vessel is usually made of 304 or 316L stainless steel, which is corrosion-resistant and does not release contaminants into the stored liquid gas.
Polished Internal Surfaces
To prevent particle shedding or bacterial growth, the interior surfaces of the tank are electropolished. This is especially important when storing gases used in ultra-clean semiconductor environments.
Leak-Proof Valves and Seals
Precision-engineered valves with vacuum jackets ensure that there is no leakage during filling, withdrawal, or standby periods.
Low Boil-Off Rate
Thanks to advanced insulation technology, these tanks have extremely low rates of gas boil-off. This not only saves product but also ensures stable gas supply and purity.
Cryogenic vacuum storage tanks are widely used in various segments of the electronics industry. Below are key areas where their role is indispensable:
Semiconductor Manufacturing
Ultra-high-purity nitrogen and argon are required for inerting, annealing, and etching steps in wafer processing. Cryogenic tanks provide the cleanest delivery mechanism for these gases.
Flat Panel Display Production
Liquid nitrogen and argon are used to cool or stabilize substrates during OLED and LCD panel fabrication. Tanks must maintain consistent purity to prevent pixel defects or layer misalignment.
Solar Cell Fabrication
Hydrogen and argon are essential in doping, sintering, and plasma-enhanced chemical vapor deposition (PECVD) processes. Cryogenic storage ensures stable flow rates and low impurity levels.
MEMS and Sensors
Small-scale microelectronics, such as accelerometers and gyroscopes, are highly sensitive to any contamination. Cryogenic storage ensures pure gas delivery for etching and deposition.
LED Manufacturing
Stable temperature and high-purity nitrogen are required in epitaxial growth and device assembly. Cryogenic tanks support consistent production environments.
Cryogenic vacuum tanks offer several distinct advantages over non-vacuum or foam-insulated storage systems, especially in high-purity gas applications:
Better temperature control with less heat ingress
Longer holding time due to lower boil-off rates
Reduced frequency of refilling and system purging
Minimal contamination risk from the atmosphere
Compact footprint and modular design options
Lower operational costs over time
In cleanroom environments, every material and system must meet strict contamination control standards. Cryogenic vacuum storage tanks are the only choice when absolute purity is required.
To ensure optimal performance of cryogenic vacuum storage tanks in electronics manufacturing, several best practices should be followed:
Regular Vacuum Integrity Testing
Check the vacuum space for pressure loss. A decrease in insulation performance could indicate a breach in the vacuum jacket, reducing efficiency.
Sensor and Valve Calibration
Verify the accuracy of temperature and pressure sensors. Ensure all valves are functioning correctly and do not introduce air or moisture.
Material Compatibility Checks
Inspect internal components for signs of corrosion or wear, especially if new gases or higher flow rates are introduced.
Clean Transfer Lines
Use vacuum-jacketed piping or UHP (ultra-high purity) tubing to connect the tank to the point-of-use. Avoid standard hoses or exposed metal lines that may release contaminants.
Training and Safety Protocols
Ensure that operators are trained in cryogenic handling procedures and are aware of emergency venting and shutdown steps.
When gas purity matters, choosing the right tank supplier is just as important as choosing the right gas. CryoTriumph is a global leader in the design and manufacture of cryogenic storage solutions, with a focus on high-purity applications like electronics, semiconductors, and photovoltaic production.
CryoTriumph offers:
A full range of cryogenic liquid storage tanks, including cryogenic vacuum storage tanks, LNG storage tanks, micro bulk tanks, and liquid hydrogen storage tanks
Custom-engineered solutions for high-purity and cleanroom environments
Certified manufacturing facilities adhering to ASME, ISO, and GB standards
Precision-welded stainless steel interiors with electropolished finishes
Responsive technical support, including system design and installation guidance
Whether you are building a new electronics manufacturing line or upgrading an existing facility, CryoTriumph provides the expertise and equipment to support your gas storage needs.
To learn more about their solutions, visit www.cryotriumph.com and speak with their technical team today.
In the electronics industry, there is no room for compromise when it comes to gas purity. The slightest impurity can jeopardize an entire batch of high-value components. Cryogenic vacuum storage tanks offer the most secure and efficient method for storing and supplying ultra-pure gases to precision manufacturing processes.
With advanced insulation, corrosion-resistant materials, and contamination-proof design, these tanks are essential for semiconductor, solar, and display manufacturers. By partnering with a trusted supplier like CryoTriumph, electronics companies can ensure that their gas systems meet the highest purity and performance standards.
Explore the full range of cryogenic storage solutions at www.cryotriumph.com and take the next step in securing your gas supply chain with confidence and quality.
