Transitioning from high-pressure cylinders or liquid dewars to bulk cryogenic storage is a critical infrastructure milestone. It shifts gas supply from a logistical bottleneck to an optimized, continuous utility. A properly sized and engineered cryogenic tank represents a durable, 20- to 30-year operational asset. However, under-sizing your equipment often leads to frustrating supply disruptions. Poor insulation design also drains budgets through silent, continuous gas loss known as evaporation.
You need a reliable strategy to navigate these complex engineering requirements. This guide gives facility managers and procurement engineers an evidence-based framework. You will learn how to evaluate, size, and select the optimal vessel for your specific operational demands. We will cover thermal efficiency metrics, crucial safety standards, and practical site considerations. Ultimately, you will gain the insights needed to ensure continuous, compliant gas delivery while maintaining peak facility performance.
Efficiency: Bulk storage eliminates cylinder handling, prevents gas return waste, and ensures higher gas purity via closed-loop, continuous piping.
Cost Control: Boil-Off Rate (BOR) is the ultimate metric for OPEX. Standard tanks lose 0.3%–0.8% daily; high-performance insulation drops this below 0.2%.
Sizing Strategy: Tank capacity must align with the facility's dynamic consumption rate to ensure a "constant pull," preventing idle pressure buildup and product loss.
Safety Imperatives: System design must account for extreme liquid-to-gas expansion ratios (up to 860:1) and oxygen-deficiency hazards (ODH).

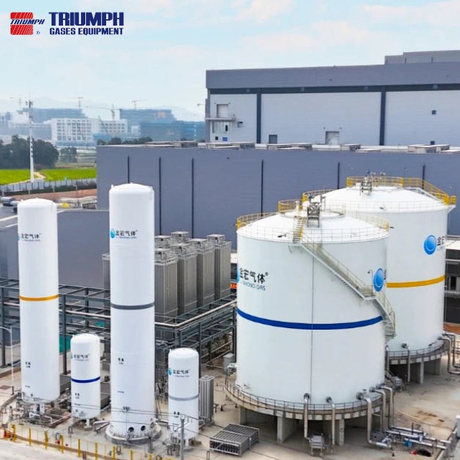

Many growing facilities initially rely on portable liquid dewars. As production scales, this setup rapidly becomes inefficient. Exchanging multiple 160L cylinders weekly disrupts daily operations. It introduces severe safety risks on the factory floor. Heavy lifting and continuous manual connections lead to avoidable workplace accidents. Bulk storage solves these issues immediately. It provides a centralized, undisturbed supply that scales with your output.
We must understand the "constant pull" requirement to maximize this efficiency. Bulk tanks rely on steady, continuous gas withdrawal. Engineers call this "pulling product." This natural withdrawal regulates internal pressure efficiently. It prevents the system from venting excess gas into the atmosphere. If you buy a massive vessel but use very little gas, idle pressure builds up inevitably. You lose valuable product through safety venting.
You should also examine operational realities regarding asset control. Purchasing a high-quality Cryogenic Tank yields excellent operational autonomy. It breaks rigid vendor lock-in cycles. You can negotiate bulk liquid contracts freely on the open market. This strategy eliminates the premium logistics fees attached to daily cylinder deliveries. Centralized piping also removes "empty-return" waste. Dewars always return to vendors with residual gas inside. You paid for that gas, but you never used it. Bulk systems eliminate this hidden loss completely. They also guarantee process purity through a highly sealed, undisturbed distribution network.
Boil-Off Rate (BOR) dictates the true thermal efficiency of your system. It represents the percentage of liquid lost daily to natural evaporation. Ambient heat constantly tries to penetrate the vessel. A standard unit might lose 0.3% to 0.8% of its volume daily. High-performance insulation drops this rate below 0.2%. Over a 20-year lifespan, a 0.6% daily difference translates to massive bulk gas savings. You must evaluate BOR rigorously during procurement.

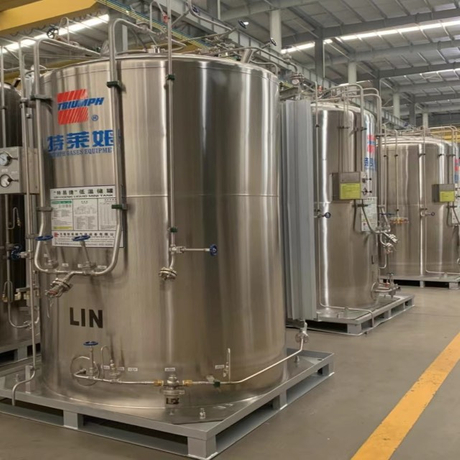

Dual-wall construction makes this extreme insulation possible. The inner vessel handles severe thermal shock smoothly. It safely contains the liquid at extreme sub-zero temperatures. The outer jacket, usually crafted from carbon steel, provides necessary structural integrity. The annular space between them houses the actual insulation. Manufacturers typically use three primary methods:
Multi-Layer Insulation (MLI) with Vacuum: Offers the highest efficiency for small to medium vessels.
Expanded Perlite: A reliable, cost-effective powder used in massive bulk storage installations.
Cellular Glass: Provides excellent moisture resistance and structural support for specific base applications.
Vacuum integrity remains the most critical factor. Degraded vacuum causes sudden, severe BOR spikes.

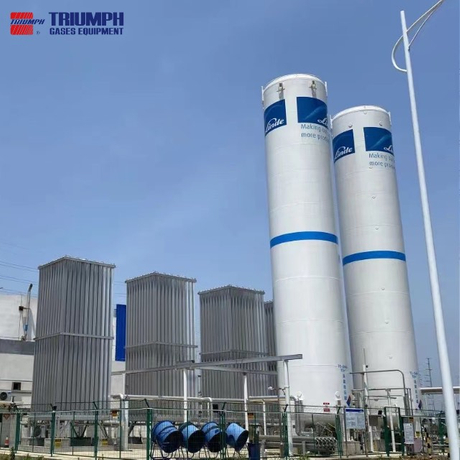

Delivery pressure management matters just as much as insulation. Integrated vaporizers and pressure-building circuits handle this essential task. They ensure a constant delivery pressure to your facility pipeline. This happens regardless of the current liquid level inside. When line pressure drops, the circuit vaporizes a small amount of liquid automatically. It routes this gas back into the top headspace. This mechanism pushes the remaining liquid out at your required flow rate.
Phase changes generate immense internal pressure. Understanding this specific physics is non-negotiable for system safety. Based on Berkeley Lab specifications, cryogenic liquids feature extreme expansion ratios. When they warm to room temperature, they expand violently into gas. Trapped liquid inside a closed pipe will burst solid metal easily. These extreme volume shifts dictate the precise sizing of your pressure relief system.
Cryogenic Liquid | Boiling Point | Liquid-to-Gas Expansion Ratio | Primary Hazard Profile |
|---|---|---|---|
Liquid Nitrogen (LN2) | -196°C (-320°F) | 696:1 | Oxygen-Deficiency Hazard (ODH) |
Liquid Argon (LAr) | -186°C (-302°F) | 847:1 | Severe Asphyxiation / ODH |
Liquid Oxygen (LOX) | -183°C (-297°F) | 860:1 | Extreme Fire Hazard / Enrichment |
Material embrittlement serves as another major structural threat. Working temperatures routinely drop below -150°C. Standard carbon steel shatters like glass under these severe conditions. Improper plastics also suffer fatal brittle fracture. You must use 300-series stainless steel or specific aluminum alloys for the inner vessel and plumbing. These specialized metals maintain necessary ductility at extreme cryogenic temperatures.
Each gas carries unique hazard profiles that dictate site preparation. Nitrogen and Argon pose serious Oxygen-Deficiency Hazards (ODH). If venting occurs in confined spaces, they displace breathable oxygen rapidly. This creates an invisible, odorless asphyxiation risk. Oxygen presents an entirely different danger. Liquid Oxygen (LOX) creates severe fire hazards. It causes rapid oxygen enrichment in the surrounding area. Furthermore, extremely cold external lines can condense ambient air. This creates LOX drips on the ground. You must prepare the site with specialized, hydrocarbon-free concrete pads. Using asphalt is strictly prohibited under LOX equipment because it becomes highly explosive.

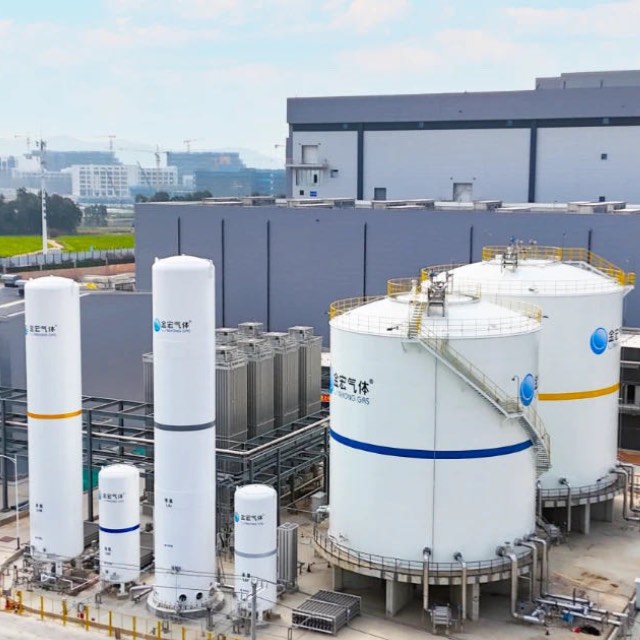

You must calculate required capacity based on usage duration, frequency, and local delivery schedules. Do not merely look at your peak load. Standard vessel sizes range widely from 300 to 100,000 gallons. You should build in sufficient buffer capacity to prevent shortages. However, avoid excessive over-sizing. Too much idle capacity leads directly to excessive idle boil-off and wasted gas.
Modern operations require dual-probe monitoring systems. These track both temperature and internal liquid levels continuously. You should integrate these probes with cloud-based telemetry systems. This automates vendor refills and prevents accidental run-outs. More importantly, telemetry triggers early warnings for sudden vacuum failure. Catching insulation degradation early saves thousands in lost product.
Sizing & Selection Framework Chart | ||
Evaluation Category | Best Practice | Common Mistake to Avoid |
|---|---|---|
Capacity Sizing | Match size to "constant pull" rate plus a 20% buffer. | Sizing only for maximum peak load, causing idle venting. |
Monitoring | Install dual-probe telemetry for auto-refills. | Relying on manual gauge checks by floor staff. |
Site Footprint | Design concrete pads for 18-wheeler turning radius. | Placing equipment too close to property lines or power lines. |
You must assess geographical and facility constraints before ordering equipment. Industrial bulk transport trailers are massive 18-wheelers. They require significant turnaround space and sturdy access roads. The installation site demands specific concrete pad thickness to support immense weights. You must also incorporate seismic anchoring requirements based on your local geological fault lines.
Prioritize manufacturers that provide clear, ergonomic accessibility to safety valves, regulators, and vacuum ports. Routine maintenance dictates long-term system longevity. If technicians cannot easily reach the pressure relief valves, maintenance will lag. Strong OEM support ensures you get replacement parts swiftly when valves inevitably wear out.
You face a choice between purchasing a custom-engineered unit or leasing equipment directly from a localized gas distributor. Purchasing gives you ultimate control. You own the asset and can shop around for the best bulk gas rates. Leasing ties you to one supplier. While leasing reduces upfront friction, owning the asset usually offers far better long-term operational flexibility.
Catastrophic over-pressurization is the most severe risk in bulk storage. You must require redundant pressure relief systems. Detail the necessity of dual safety mechanisms during your engineering review. Primary Pressure Relief Valves (PRVs) handle normal pressure fluctuations. You must pair these with secondary rupture discs. If the PRV fails or freezes, the rupture disc bursts safely. This redundancy prevents Boiling Liquid Expanding Vapor Explosions (BLEVE).
Regulatory compliance protects your facility from fines and shutdowns. You must advise your engineering team to verify all certifications. The vessel must meet strict guidelines before it enters your site. Look for ASME Section VIII compliance in North America. European operations require PED (Pressure Equipment Directive) certification. You should also align the installation with local OSHA equivalent standards for pressurized cryogenic vessels.
Finally, establish rigorous routine inspection cycles. You must set clear expectations for your daily operations teams. They should perform daily visual checks for abnormal frost or ice accumulation on the outer jacket. Heavy ice patches clearly indicate localized insulation failure. Beyond daily checks, mandate biannual deep-system audits. Qualified technicians should test the PRVs, verify telemetry accuracy, and check vacuum port seals during these audits.
Sizing and selecting the proper storage vessel is a delicate engineering balance. You must match thermal efficiency and BOR to your facility's dynamic consumption rates. By ensuring a steady "constant pull," you eliminate wasteful venting and optimize gas usage. Concurrently, you must adhere rigorously to strict safety standards, keeping expansion ratios and material limits in mind.
Your next steps should focus on site preparation and data gathering. We advise buyers to conduct a full site ODH assessment first. Then, audit at least one full month's worth of your current gas consumption data. Note your peak usage times and idle periods carefully. Armed with this accurate data, you can confidently request a formalized engineering proposal from reputable equipment manufacturers.
A: These vessels typically last 20 to 30 years. This longevity assumes you perform routine maintenance on regulators and safety valves. You must also ensure the vacuum insulation remains intact. Sudden vacuum loss can shorten the functional lifespan if left unrepaired.
A: BOR represents the percentage of liquid gas lost per day to natural evaporation. Ambient heat transfers through the vessel walls, turning liquid back into gas. It acts as a key driver of hidden operational waste. High-quality insulation keeps this rate below 0.2% daily.
A: No. Manufacturers engineer, clean, and rate vessels for specific gas densities, temperatures, and material compatibility. This is especially true for Liquid Oxygen (LOX). Oxygen systems require stringent, hydrocarbon-free cleaning. Introducing incompatible gases poses severe contamination and explosion risks.
