Liquid hydrogen (LH₂) is a crucial component in various industries, including aerospace, energy, and transportation, due to its exceptionally high energy density and environmentally friendly combustion properties. Unlike conventional fuels, LH₂ produces only water vapor when combusted, making it an essential element in the transition toward green energy and sustainable technologies.
However, hydrogen in its liquid form is highly volatile and requires extremely low temperatures to maintain its cryogenic state. Handling and storing LH₂ safely demands specialized equipment engineered with precision to ensure both operational efficiency and safety. This article delves deeply into the working principles of liquid hydrogen equipment, focusing on storage tanks, gasifiers, pumps, and the associated monitoring and safety systems. It also highlights how fundamental physical principles—such as cryogenics, phase change, and thermodynamics—are applied in real-world industrial devices.

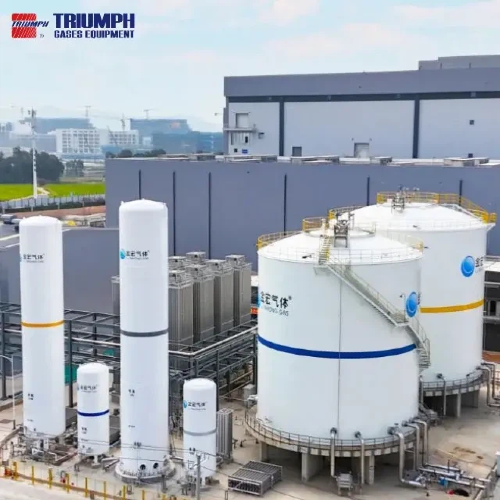

Liquid hydrogen equipment encompasses a broad range of systems designed to store, transport, and utilize hydrogen in its liquid form. The primary goal of these systems is to maintain hydrogen at extremely low temperatures while providing controlled delivery in gaseous or liquid form for downstream applications.
These systems are essential in sectors where gaseous hydrogen is impractical due to volume constraints. Storing hydrogen in liquid form reduces its volume by approximately 800 times compared to gaseous hydrogen at standard atmospheric conditions, making it feasible for long-distance transport, aerospace applications, and industrial processes.
Storage Tanks: Cryogenic vessels designed to hold LH₂ at temperatures below -252.8°C. These tanks integrate multiple layers of insulation and structural support to minimize heat transfer and prevent boil-off.
Gasifiers: Devices that convert liquid hydrogen into gaseous form on demand, utilizing controlled heat exchange to vaporize LH₂ efficiently.
Pumps and Skid Systems: Equipment facilitating the transfer, distribution, and pressure regulation of LH₂ across pipelines or to end-use applications.
Each of these components plays a critical role in maintaining the integrity of the LH₂ system while ensuring that operational parameters such as temperature and pressure remain within safe and optimal ranges.
To maintain hydrogen in its liquid state, it must be stored below its boiling point of -252.8°C. This extreme low temperature presents significant engineering challenges. Liquid hydrogen storage tanks employ the following principles:
Double-Walled Construction: The inner tank directly contains LH₂, while the outer tank provides structural support and houses insulation. The gap between these tanks is critical for minimizing heat conduction from the environment.
Vacuum Insulation: By creating a near-complete vacuum between the inner and outer walls, heat transfer through conduction and convection is dramatically reduced.
Multi-Layer Insulation (MLI): Layers of reflective films, such as aluminized Mylar, are placed in the vacuum space to reduce radiation heat transfer.
These design considerations allow the liquid hydrogen to remain stable over extended periods, reducing boil-off losses and enhancing operational safety. Additionally, material selection for tanks must account for low-temperature brittleness; stainless steel and specially treated carbon steel are commonly used for inner tank construction to maintain structural integrity at cryogenic temperatures.
When liquid hydrogen is required in gaseous form, controlled vaporization is essential. Gasifiers operate on fundamental thermodynamic principles:
Heat Exchange: LH₂ absorbs heat from either ambient sources or actively controlled heating systems, raising its temperature and facilitating phase change from liquid to gas.
Controlled Vaporization: The gasifier ensures a smooth transition by maintaining uniform heat distribution, preventing rapid pressure surges that could compromise system integrity.
Flow Regulation: Pressure and flow control mechanisms are integrated into gasifiers to maintain consistent gas output rates suitable for fuel cells, industrial processes, or combustion engines.
Properly designed gasification systems maximize efficiency while minimizing energy losses and risk of turbulence-induced instabilities within the flow path.
Maintaining appropriate pressure levels is critical for the safe operation of LH₂ systems due to the combined effects of cryogenic temperatures and volatile hydrogen gas expansion. Safety mechanisms include:
Pressure Relief Valves: Automatically vent excess pressure, preventing potential over-pressurization scenarios.
Burst Discs: Provide a fail-safe mechanism by rupturing at predetermined pressures to avoid catastrophic failure if primary relief valves malfunction.
Pressure Monitoring Systems: Continuously monitor pressure and temperature across the system, providing early alerts to operators in case of deviations.
By combining these mechanisms, LH₂ equipment ensures both safety and operational reliability. In addition, the placement and sizing of relief valves and burst discs are calculated based on thermodynamic modeling, hydrogen flow rates, and worst-case pressure scenarios.
Pumps operating in LH₂ systems are critical for transferring liquid hydrogen safely and efficiently. Cryogenic pumps follow several engineering principles:
Material Selection: Components must retain mechanical properties at extremely low temperatures to prevent fracture or deformation.
Insulation: Minimizing heat ingress into the pumped LH₂ stream is essential to prevent premature vaporization.
Flow Control: Pumps must provide precise flow rates to downstream systems without causing pressure fluctuations that could stress other components.
Optimizing these pumps involves balancing efficiency, energy consumption, and safety, as the cryogenic environment imposes unique constraints compared to conventional fluid pumping.
Liquid hydrogen equipment relies on several critical components, each designed to ensure safe, efficient, and reliable operation.
Inner Tank: The inner tank directly holds the liquid hydrogen and is constructed from materials capable of withstanding extreme cryogenic temperatures. It maintains the hydrogen in a stable liquid state while minimizing heat transfer that could lead to boil-off.
Outer Tank: Surrounding the inner tank, the outer tank provides structural support and houses insulation layers. It also protects the inner tank from environmental impacts, mechanical stress, and accidental damage.
Vacuum Insulation: Positioned between the inner and outer tanks, the vacuum insulation dramatically reduces heat transfer by conduction and convection. This is essential for maintaining the low temperature of LH₂ over extended periods.
Multi-Layer Insulation (MLI): Reflective layers within the vacuum space reduce radiative heat transfer, further enhancing the tank’s cryogenic efficiency and lowering energy losses.
Gasifier: Converts liquid hydrogen into gaseous form on demand through controlled heat exchange, ensuring stable pressure and flow for downstream applications.
Pump: Transfers LH₂ across pipelines or into system components while maintaining cryogenic temperatures, preventing premature vaporization.
Pressure Relief Valve: Automatically vents excess pressure to prevent structural failure or operational hazards.
Monitoring System: Continuously tracks temperature, pressure, and flow, providing real-time data to maintain safety and operational efficiency.
Together, these components form a reliable and integrated system for storing, transferring, and utilizing liquid hydrogen safely and efficiently.
Proper maintenance is critical for prolonging the lifespan of LH₂ equipment and ensuring operational safety:
Regular Inspections: Check for leaks, damage to insulation, and signs of wear in critical components.
Calibration of Sensors: Pressure, temperature, and flow sensors must be regularly calibrated to ensure accurate readings.
Personnel Training: Operators should be trained in handling LH₂, emergency response procedures, and understanding thermodynamic principles of cryogenic systems.
Preventive Measures: Measures include purging pipelines to prevent ice formation, monitoring boil-off rates, and verifying insulation integrity.
Adhering to these practices ensures the safe, efficient, and long-term operation of LH₂ systems.
Liquid hydrogen equipment finds applications in a wide array of industrial and scientific domains:
Aerospace: LH₂ serves as a high-energy-density fuel for rocket engines and propulsion systems.
Energy Sector: Utilized in power generation and hydrogen fuel cells, offering a clean alternative to fossil fuels.
Transportation: Supports fuel cell vehicles and hydrogen refueling stations.
Industrial Processes: Employed in metallurgical, chemical, and semiconductor industries where high-purity hydrogen is required.
The versatility of LH₂, combined with advanced storage and handling technologies, makes it indispensable in modern energy and industrial landscapes.
Understanding the working principles of liquid hydrogen equipment is crucial for ensuring safe, efficient, and reliable operation. From cryogenic storage tanks to gasifiers and pumps, each component is engineered based on fundamental physical principles such as cryogenics, phase change, and pressure management. As industries increasingly adopt hydrogen-based solutions for energy, transportation, and industrial applications, the demand for advanced, high-performance liquid hydrogen equipment continues to grow.
For organizations seeking reliable solutions, Wuxi Triumph Gases Equipment Co., Ltd. provides a comprehensive range of liquid hydrogen systems, including storage tanks, gasifiers, pumps, and integrated Skid solutions. Their expertise spans design, manufacturing, and strict safety compliance, ensuring equipment that meets demanding operational requirements while maximizing efficiency and safety.
If you want to learn more about innovative liquid hydrogen solutions or discuss customized equipment for your specific needs, contacting Wuxi Triumph Gases Equipment Co., Ltd. is an ideal next step. Their experienced team can offer technical guidance and support, helping businesses implement advanced hydrogen handling systems with confidence and reliability.
1. What is the boiling point of liquid hydrogen?
The boiling point of hydrogen at atmospheric pressure is -252.8°C, requiring specialized cryogenic equipment for storage.
2. How is liquid hydrogen stored?
Liquid hydrogen is stored in double-walled, vacuum-insulated cryogenic tanks equipped with multi-layer insulation to minimize heat transfer.
3. What is a gasifier?
A gasifier converts liquid hydrogen into gaseous form by controlled heat exchange, enabling downstream usage in engines, fuel cells, or industrial processes.
4. Why is pressure regulation important in LH₂ systems?
Proper pressure regulation prevents over-pressurization, ensures safe operation, and maintains system efficiency.
5. What industries use liquid hydrogen equipment?
Aerospace, energy, transportation, and industrial manufacturing sectors rely on liquid hydrogen equipment for its high energy density and clean combustion properties.
