In industries where gases are essential for production, storage, and energy transfer, managing these substances in a safe and efficient manner is a top priority. This is especially true when those gases are stored in liquefied form at extremely low temperatures. That’s where cryogenic storage tanks come into play.
A cryogenic storage tank is an insulated pressure vessel used to store liquefied gases at cryogenic temperatures, typically below -150°C (-238°F). These tanks are vital for handling gases like liquid oxygen (LOX), nitrogen (LIN), argon (LAR), carbon dioxide (CO₂), LNG (liquefied natural gas), and liquid hydrogen (LH₂). From steel mills and petrochemical plants to electronic gas supply systems, hydrogen energy projects, and natural gas infrastructures, cryogenic tanks provide the reliability and performance needed to operate smoothly.
This article will explain what cryogenic storage tanks are, how they work, what types are available, where they are used, and why selecting a reliable supplier like CryoTriumph is essential for long-term performance and safety.
Cryogenics refers to the science of ultra-low temperatures, generally below -150°C. At these temperatures, gases condense into liquids, dramatically reducing their volume—making them easier and more economical to transport and store. For example, one liter of liquid nitrogen equates to about 700 liters of nitrogen gas at room temperature.
However, storing cryogenic liquids comes with challenges. Without adequate insulation and safety systems, heat will cause the liquid to vaporize, increasing pressure and potentially leading to dangerous situations. Cryogenic storage tanks are specifically engineered to handle these extreme conditions.

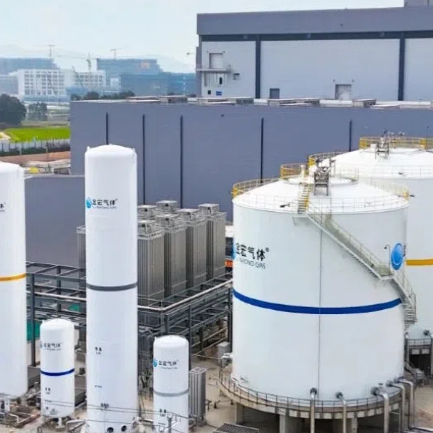

A cryogenic storage tank is a large, double-walled vacuum-insulated vessel that keeps liquefied gases at low temperatures while maintaining their physical state. The inner vessel holds the cryogenic liquid, while the outer shell provides vacuum insulation to prevent heat transfer. These tanks can be either vertical or horizontal in design and may vary greatly in size—from small micro bulk tanks to massive field-erected tanks for LNG terminals.
Cryogenic tanks are made from stainless steel or low-temperature carbon steel, and they include safety systems like pressure relief valves, level indicators, vacuum monitoring devices, and emergency shut-off valves.
There are multiple tank configurations designed to meet different operational needs. Below are the most common types used across industries:

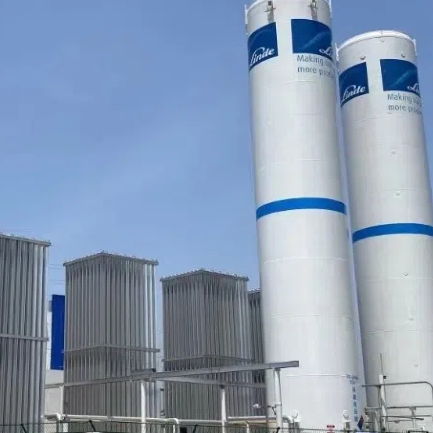

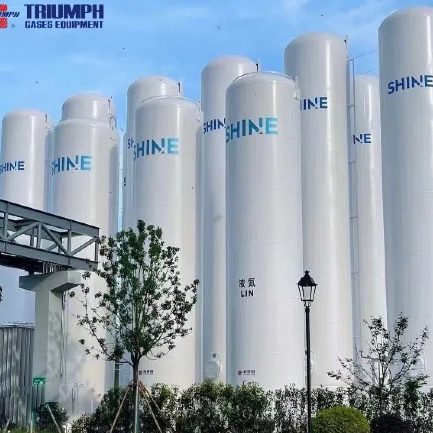

These tanks are widely used for storing industrial gases like liquid oxygen, nitrogen, argon, and carbon dioxide. Found in steel production, chemical processing, and medical gas systems, they offer high-capacity storage with excellent thermal insulation.
LNG (liquefied natural gas) storage tanks are engineered to store natural gas at temperatures around -162°C. They are used in LNG liquefaction plants, distribution terminals, and power plants. These tanks require advanced materials and multilayer insulation systems to handle high pressures and prevent heat ingress.
Due to hydrogen’s extremely low liquefaction point (-253°C), liquid hydrogen storage tanks require ultra-efficient vacuum insulation and sophisticated safety systems. These tanks are increasingly used in hydrogen energy infrastructure, including fuel cell vehicle refueling stations and green hydrogen production facilities.
Micro bulk tanks are compact storage systems ideal for businesses that consume moderate volumes of gas, such as laboratories, small factories, and research centers. They bridge the gap between high-pressure cylinders and larger bulk tanks, providing continuous supply with less space and operational complexity.
These are tanks designed with high-vacuum double-wall insulation to store liquefied gases with minimal thermal losses. They are used in industries where purity and efficiency are essential, such as electronics manufacturing, aerospace, and medical systems.
Cryogenic storage tanks function on the principle of thermal insulation and pressure management. The inner tank holds the liquefied gas, while the space between the inner and outer walls is vacuum-insulated and may contain multilayer reflective insulation to reduce radiant heat transfer.
Key operational components include:
Pressure relief valves to maintain safe internal pressure
Level gauges to monitor liquid levels
Vacuum sensors to detect insulation efficiency
Fill and withdrawal lines for liquid and gas transfer
Safety shut-off systems to prevent over-pressurization
Tanks are either refilled on-site from tanker trucks or designed to be part of a centralized storage and distribution network.
Cryogenic storage tanks are essential in various industries due to their ability to safely store large volumes of industrial gases. Let’s explore how they are used in specific sectors:
In steel manufacturing, gases like oxygen and nitrogen are used for combustion, cutting, and process control. Large cryogenic liquid storage tanks ensure a stable supply for blast furnaces, ladle metallurgy, and continuous casting processes.
The petrochemical sector relies heavily on cryogenic storage for handling gases like hydrogen, ethylene, and carbon dioxide. Cryogenic tanks support processes such as hydrogenation, inerting, and refining.
Ultra-high-purity gases stored in cryogenic vacuum tanks are vital in producing semiconductors and electronic components. These tanks provide contamination-free gas supply in cleanroom environments.
With the growth of clean energy technologies, liquid hydrogen storage tanks are becoming increasingly common. They enable safe storage and transportation of hydrogen for fuel cell vehicles, backup power systems, and industrial decarbonization.
LNG storage tanks play a key role in the natural gas supply chain, from storage terminals to remote power stations. They reduce the footprint and cost of gas transportation, especially in areas without pipeline infrastructure.
There are several compelling reasons why industries invest in cryogenic storage solutions:
Efficient storage: Liquefied gases occupy less volume
Reduced cost: Lower transportation and handling expenses
Stable supply: Continuous gas availability for critical operations
Enhanced safety: Pressure control and insulation reduce hazards
Space-saving design: Especially in micro bulk configurations
Environmental benefits: Especially for hydrogen and LNG applications
These advantages make cryogenic tanks an indispensable part of modern gas supply networks.
Not all cryogenic tanks are created equal. To ensure quality, durability, and performance, it’s crucial to partner with a reputable and experienced manufacturer. That’s why industries around the world trust CryoTriumph.
As a professional supplier of cryogenic storage systems, CryoTriumph offers:
A full range of tanks including LNG, LH₂, micro bulk, and vacuum insulated models
Precision-engineered designs tailored to client needs
Advanced manufacturing technology and strict quality control
Global logistics support and after-sales service
Compliance with international standards like ASME, GB, ISO
Whether you operate a petrochemical plant, steel facility, or hydrogen fueling station, CryoTriumph provides reliable cryogenic storage solutions to support your operations.
Cryogenic storage tanks are the backbone of industrial gas infrastructure. They make it possible to store, manage, and distribute liquefied gases efficiently and safely in a wide range of demanding applications. From massive LNG terminals to compact micro bulk systems, these tanks are a critical component in modern industry.
Understanding what a cryogenic storage tank is—and choosing the right type for your needs—is essential for long-term operational success. And working with a dependable partner like CryoTriumph ensures you receive durable, high-performance equipment backed by technical expertise and global service.
