| Quantity: | |
|---|---|
| Parameter | Value |
|---|---|
| Origin | Wuxi, China |
| Brand | Wuxi Triumph Gases Equipment |
| Application | Cryogenic Liquid Storage |
| Working Pressure | 1.6MPa ~ 3.6MPa |
| Volume | 5m³ ~ 200m³ |
| Design Standard | GB, ASME, CE |

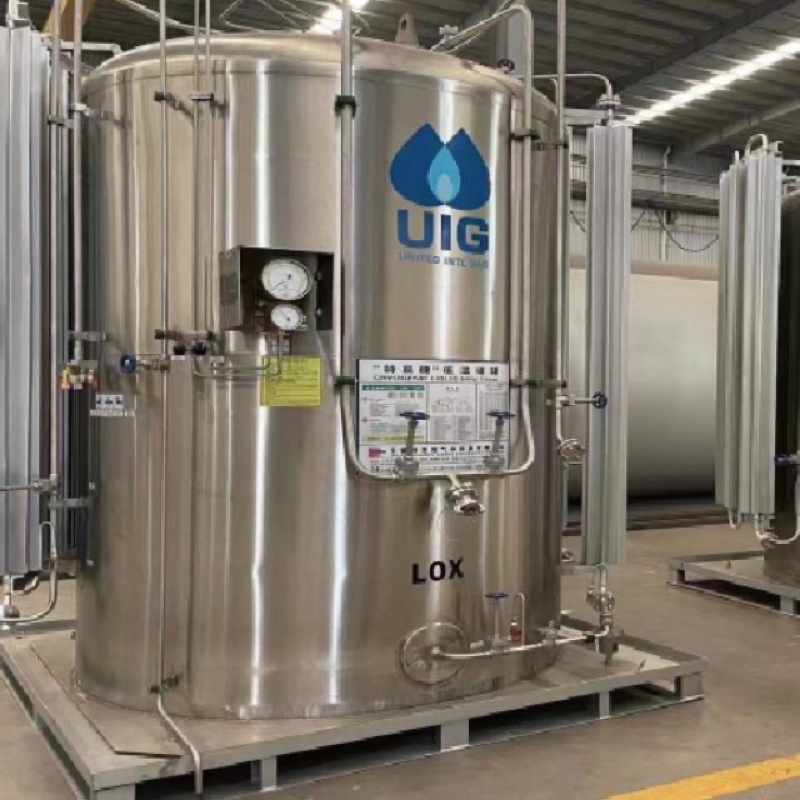

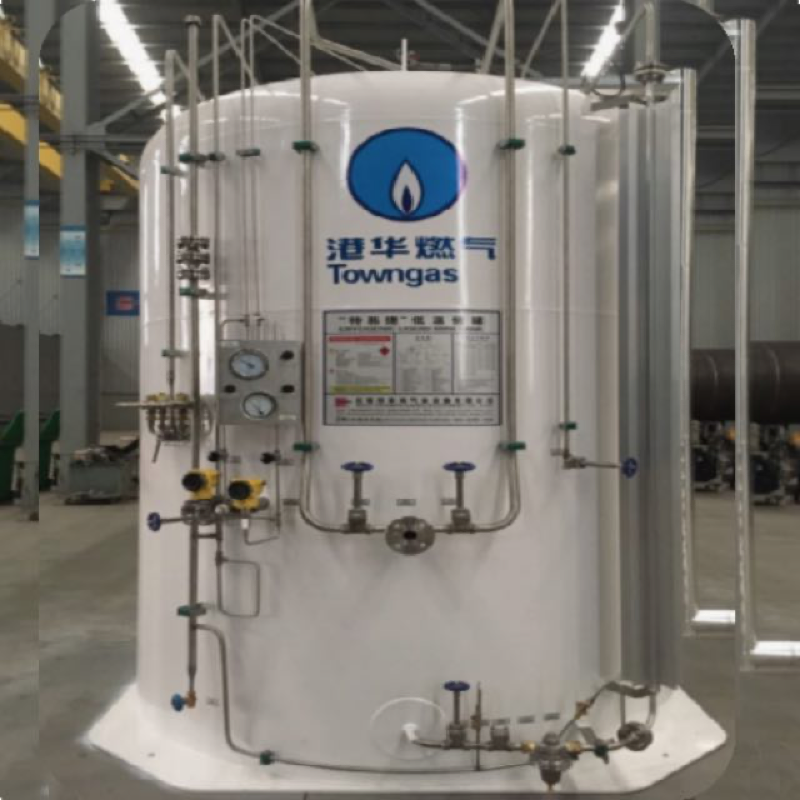

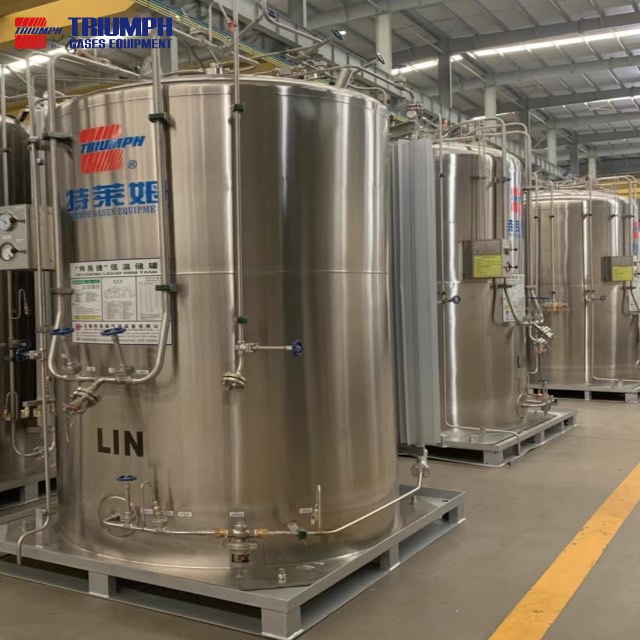

The Micro Bulk Tank is a compact storage solution designed for small to medium gas consumers (230–6,000 liters), replacing traditional high-pressure cylinders. Constructed with double-wall vacuum-insulated stainless steel (304L), these tanks provide low-pressure storage (0.5–10 bar) for gases like nitrogen, oxygen, argon, and carbon dioxide, reducing operational costs by 30–50% compared to cylinder-based systems .
Modular Sizing: Available in 230L (portable, 400 kg weight) to 6,000L (stationary, 3,500 kg weight) capacities, with optional dual-compartment designs (e.g., 3,000L oxygen + 3,000L nitrogen) for multi-gas storage.
Remote Monitoring: Built-in IoT sensors (pressure, level, temperature) transmit real-time data via 4G/LoRa, enabling predictive maintenance alerts (e.g., low level, abnormal pressure) .
Fast Refueling: Equipped with ISO 11439-standard dry break couplings, allowing filling rates up to 200 L/minute to minimize downtime during refills.
Low Operational Costs
Eliminates cylinder rental fees (50–100/cylinder/month) and reduces delivery frequency by 70% (e.g., a 5,000L tank replaces 100+ 40L cylinders/month, cutting delivery trips from 10 to 3) .
BOR ≤0.1%/day minimizes product loss, ideal for applications requiring continuous supply such as food packaging (modified atmosphere) or metal fabrication.
Safety and Compliance
Certified to ASME BPVC Section VIII (pressure vessels) and EN 13458 (transportable gas containers), ensuring global regulatory acceptance.
Double-wall construction with nitrogen inert gas purge (0.1–0.2 bar) between shells prevents oxygen enrichment in case of inner shell leakage, reducing fire risk.
Versatile Applications
Mobile Units: Trailer-mounted 2,000L tanks (towable with pickup trucks) for construction site welding gas supply, featuring fork lift pockets and lifting lugs for easy positioning.
Stationary Units: 6,000L tanks with integrated vaporizers (50–500 Nm³/h) for hospital oxygen systems, connecting directly to pipeline networks with pressure regulators.
Food & Beverage: Modified atmosphere packaging (MAP) with nitrogen (2,000L tanks supporting 500+ pallets/day production) to extend shelf life of snacks and meats.
Laser Cutting: High-purity oxygen supply (5–10 bar) for 3D metal printing and CNC laser machines, ensuring consistent cut quality with 99.995% purity gas.
Healthcare: Oxygen storage for rural clinics (1,000L tanks with 7-day backup at 5 L/min flow rate), critical for emergency care in remote areas.
Q: How does Micro Bulk compare to traditional cylinders?
A: Micro Bulk reduces handling labor by 80% (no manual cylinder swapping) and eliminates cylinder damage risks (e.g., valve breakage). Payback periods average 12–18 months for users consuming ≥50 cylinders/month .
Q: Can Micro Bulk tanks be used for LNG?

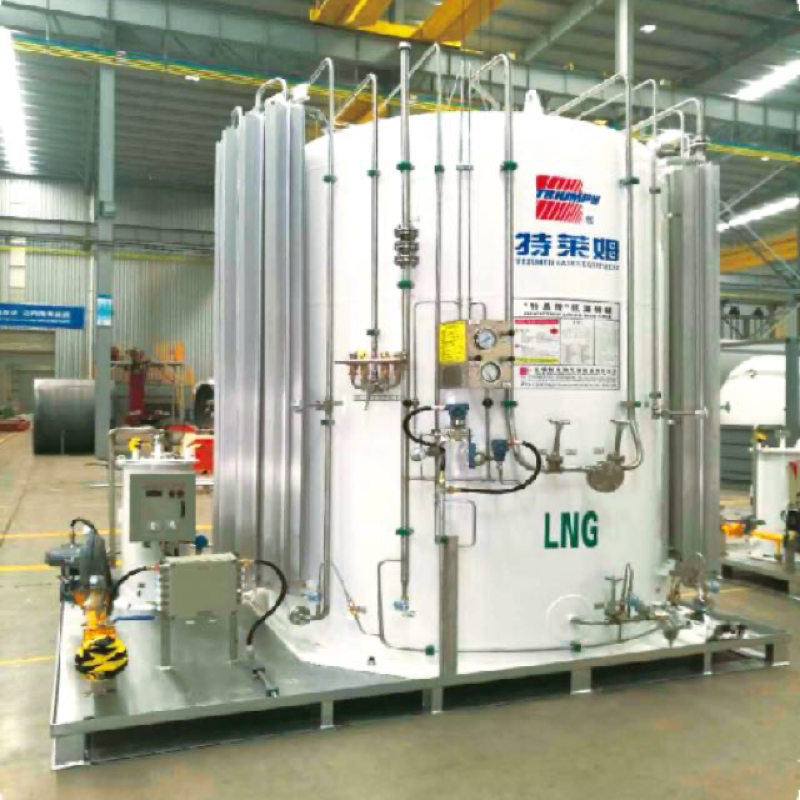

A: Yes. Specialized LNG Micro Bulk Tanks (e.g., CIMC Enric Ajt series) store LNG at -162°C with vacuum insulation (BOR ≤0.15%/day), featuring pressure-building vaporizers for direct fuel supply to LNG-powered trucks or generators .
Q: What maintenance is required?
A: Annual vacuum level testing (≤1 Pa) using a capacitance manometer and valve calibration (pressure relief valves set to 1.2× working pressure). Insulation replacement is recommended every 15–20 years to maintain BOR performance .
