| Quantity: | |
|---|---|
| Parameter | Value |
|---|---|
| Origin | Wuxi, China |
| Brand | Wuxi Triumph Gases Equipment |
| Flow Rate | 50 Nm³/h to 20,000 Nm³/h |
| Pressure Range | 0 - 25.0 MPa |
Valve Qua lity | U.S., Germany, or China |
| Application | Industrial Gas Regulation |

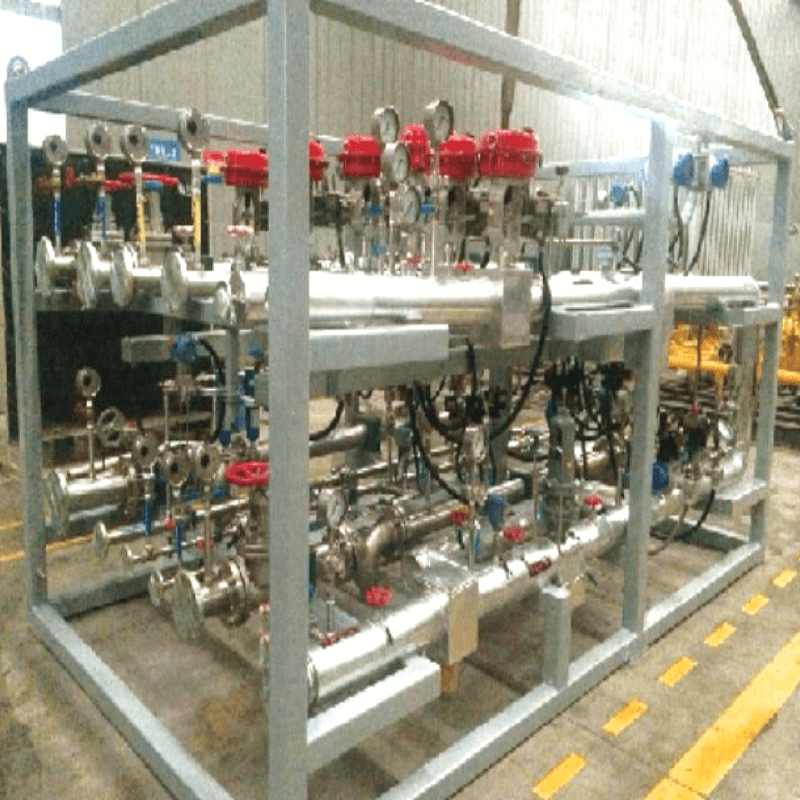

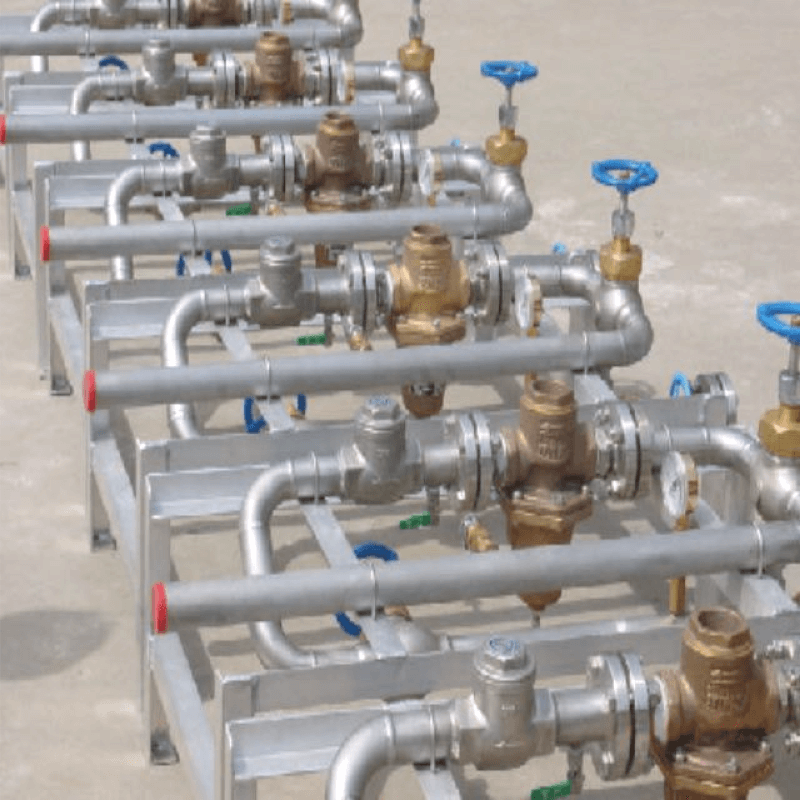

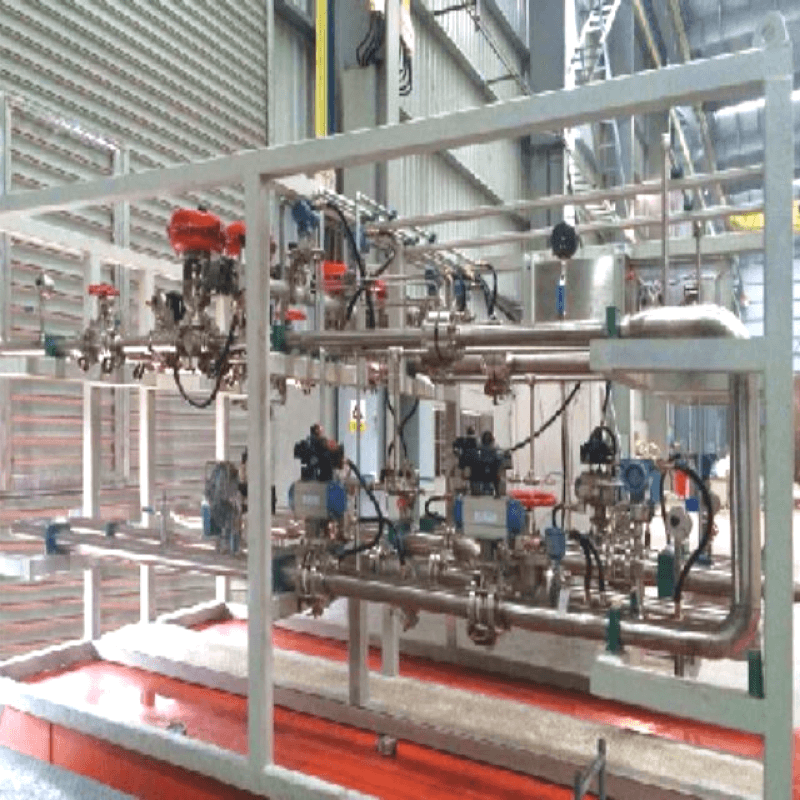

The Industrial Gases Pressure Regulating Device is a high-precision solution designed to control gas pressure in industrial processes, ensuring stable supply for applications ranging from power generation to semiconductor manufacturing. Available in single-stage (e.g., Concoa 1400 series) and pilot-operated (e.g., Honeywell HON 503) configurations, these devices offer outlet pressure ranges from 0.3 bar to 415 bar, with ±1% accuracy across full flow ranges (0.1–10,000 Nm³/h) .
Ultra-High Pressure Handling
Concoa 1400 series supports outlet pressures up to 415 bar (6000 psig), ideal for high-pressure gas cylinders, tube trailers, and industrial pipeline systems requiring intense compression .
Honeywell HON 503’s pilot-operated design ensures stable control even with inlet pressures up to 100 bar, maintaining outlet pressure variance ≤±0.5% during flow fluctuations.
Reliable and Low Maintenance
PTFE or metal seals (Inconel 718 for corrosive gases) resist degradation, requiring replacement only every 5–7 years under normal operating conditions (8,000 hours/year) .
Self-draining ports (3/8” NPT) prevent condensate buildup in low-temperature applications (-40°C to +60°C), critical for cryogenic gas systems like liquid nitrogen vaporization lines.
Safety and Compliance
Certified to ASME BPVC Section VIII (pressure vessel components) and EN 13480 (metallic industrial piping), ensuring compatibility with global standards.
ATEX/IECEx-approved models (Zone 1/2 hazardous areas) available for explosive environments, such as hydrogen refueling stations or chemical plants .
Power Plants: Pressure regulation for natural gas turbines (e.g., maintaining 10–40 bar for 50 MW generators to ensure combustion efficiency).
Semiconductor Manufacturing: Ultra-pure gas supply (99.999% purity) with nitrogen at 20 bar for cleanroom purge systems and process chambers.
Medical Facilities: Oxygen pressure control (0.5–2 bar) for hospital pipelines, ensuring consistent delivery to ventilators and surgical tools.
Q: How often should pressure regulators be calibrated?
A: Annual calibration is recommended for standard applications, but critical processes (e.g., hydrogen fueling stations or semiconductor fabs) require biannual calibration using deadweight testers to maintain ±1% accuracy .
Q: Can these regulators handle corrosive gases?
A: Yes. Models with 316L stainless steel internals and PTFE diaphragms (e.g., ControlAir Type 390) are specifically engineered for corrosive gases like chlorine, ammonia, or sulfur dioxide, with material compatibility verified via ISO 15156 testing .
Q: What is the lifespan of seals in high-pressure applications?
A: PTFE seals last 5–7 years under normal conditions (≤100 bar), while metal-to-metal seals (e.g., Inconel 718) are recommended for extreme pressures (>200 bar) and offer an indefinite lifespan with proper lubrication .
